Neutra 500-10.000
Neutralization unit for automatic pH correction of wastewater of various origins, in continuous or batch operation.
Product features
Benefits
- Compact and space saving design
- All-purpose application by means of modular design
- Low operating costs
- Fully automatic working for pH-measurement and correction
- Optimum adaption for an effective waste water treatment
- Only liquid treatment agents (chemicals)
- Trouble-free system expansion and individual adaption by means of accessories on site
- Chemical waste water treatment system for the neutralization of waste waters
- Energy-saving and user-friendly automatic design for the treatment of different origin waste water
- For free assembly in rooms – frost-free
Application areas, e.g.:
- Laboratory waste waters
- Waste water from commercial kitchens
- Beverage industry, manufacture of fruit juices, bottle flushing
- Rinsing water from electroplating
- Processing of food
Processor-controlled compact system:
- Loosely placed cover
- Ventilation DN 70
- Base discharge with ball cock
- Intake and discharge nozzle
- Single-rod measuring cells for the measurement of the pH-value
- Dosing pump for the addition of acid and base
- Chemicals container with suction lance and filling level measurement
- Chemicals collection drip pan according to WHG §19
- Stirring unit
- Resources initial fitting out
- Additional dosing unit for 2-sided regulation design
Control:
- Housing of varnished steel, protection type IP 54
- pH-measuring device with indicator and limit value adjustment
- SPS-controlled operation flow
- Control panel with menu guidance and adjustable times
- Potential-free collecting error message
- Connection possiblity for remote data transfer
- Safeguarding according to the on-site conditions
- Wired ready for connection protection according to object data sheet
- Electric connection 400 V/50 Hz/16 A resp. 32 A
Parameters
| Style | Performance [l/h] | Reaction container content [l] | Weight empty [kg] | Weight filled [kg] | Article-No. 1-sided | Article-No. 2-sided |
|---|---|---|---|---|---|---|
| AtM-Neutra 1.000-D | 1,000 | 520 | 110 | 640 | 100.20.01 | 100.21.01 |
| AtM-Neutra 2.000-D | 2,000 | 1,000 | 140 | 1,150 | 100.20.02 | 100.21.02 |
| AtM-Neutra 3.000-D | 3,000 | 1,450 | 170 | 1,630 | 100.20.03 | 100.21.03 |
| AtM-Neutra 5.000-D | 5,000 | 2,500 | 210 | 2,720 | 100.20.04 | 100.21.04 |
Further types with other performances are available.

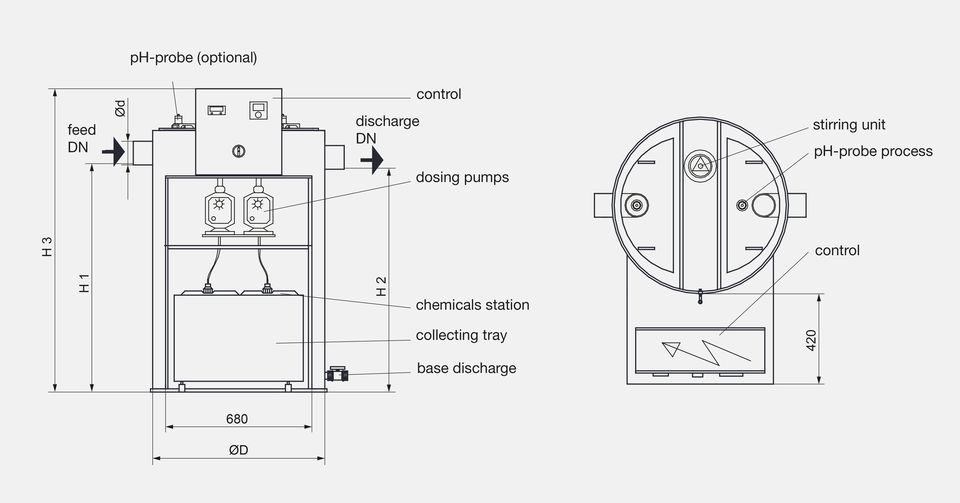

Dimension
| Style | Nominal width DN | Ø [mm] | H1 [mm] | H2 [mm] | H3 [mm] | H4 [mm] |
|---|---|---|---|---|---|---|
| AtM-Neutra 1.000-D | 100 | 110 | 1,050 | 1,030 | 1,700 | 800 |
| AtM-Neutra 2.000-D | 150 | 160 | 1,300 | 1,280 | 1,700 | 1,000 |
| AtM-Neutra 3.000-D | 150 | 160 | 1,300 | 1,280 | 1,700 | 1,200 |
| AtM-Neutra 5.000-D | 150 | 160 | 1,420 | 1,400 | 2,000 | 1,500 |
Accessories
| Denomination | Description | Article No. |
|---|---|---|
| pH end control | Optically with digital recorder | 100.50.03 |
| Signal module | ■ By remote data transmission (DFÜ) ■ Fault indication to mobile phone | 100.50.05 |
| Receiver tank | 500 – 10.000 l available from stock | – |
