SED 300/600/1000
Sedimentation unit for the chemical-physical treatment of heavily contaminated industrial wastewater, capacity 300 to 1,000 l/h.
Product features
Benefits
- Compact and space-saving design
- All-purpose application by means of modular design
- Low operating costs
- Optimum treatment of waste waters with high contaminant loads
- Fully automatic working with freely adjustable process flow
- Huge infinitely variable transfer rates
- Optimum adaption for an effective waste water treatment
- Liquid and firm treatment chemicals are applicable
- Integrated band filter
- Trouble-free system expansion and individual adaption by means of accessories on site
- Chemical and physical waste water treatment system for the removal of oil, grease and heavy metals from waste waters
- Energy-saving and user-friendly automatic design for the treatment of emulsion-charged waste water
Application areas, e.g.
- Car dealers with parts cleaning
- Grey water treatment
- Effluents from boat washing
- Surface waste water from chip stockyards
- Inside tank cleaning of silo trucks
- Container washing plants
- Cream and skin care products manufacture
- Kitchen waste waters with lipophilic contents
- Cleaning of appliances and motors by means of HD lances
- Soil remediation measures
Processor-controlled compact system:
- pH-value measurement and correction with freely selectable limit value (regulation range pH2-12)
- Stirring unit
- 3x chemicals dosing pumps for separating agents addition
- Chemicals container with suction lance and filling level measurement
- Chemicals collection drip pan according to WHG §19
- Sack filter (SF)
- Band filter (BF) with filling level supervision, fleece holder and fault report via light barrier
- Sludge dehydration container
- Resources initial fitting out
Control:
- Housing of varnished steel, protection type IP 54
- pH-measuring device with indicator and limit value adjustment
- SPS-controlled operation flow
- Control panel with menu guidance and adjustable times
- Potential-free collecting error message
- Connection possiblity for remote data transfer
- Safeguarding according to the on-site conditions
- Wired ready for connection protection according to object data sheet
- Electric connection 400 V/50 Hz/16 A resp. 32 A
Parameters
| Style | Performance [l/h] | Reaction container content [l] | Weight empty [kg] | Weight filled [kg] | Article-No. |
|---|---|---|---|---|---|
| AtM-Sed 300-C-SF | 300 | 300 | 240 | 540 | 100.40.01 |
| Atm-Sed 600-C-BF | 600 | 600 | 255 | 855 | 100.40.04 |
| AtM-Sed 1.000 | 1,000 | 1,000 | 280 | 1,280 | 100.40.05 |
Further types with other performances are available.

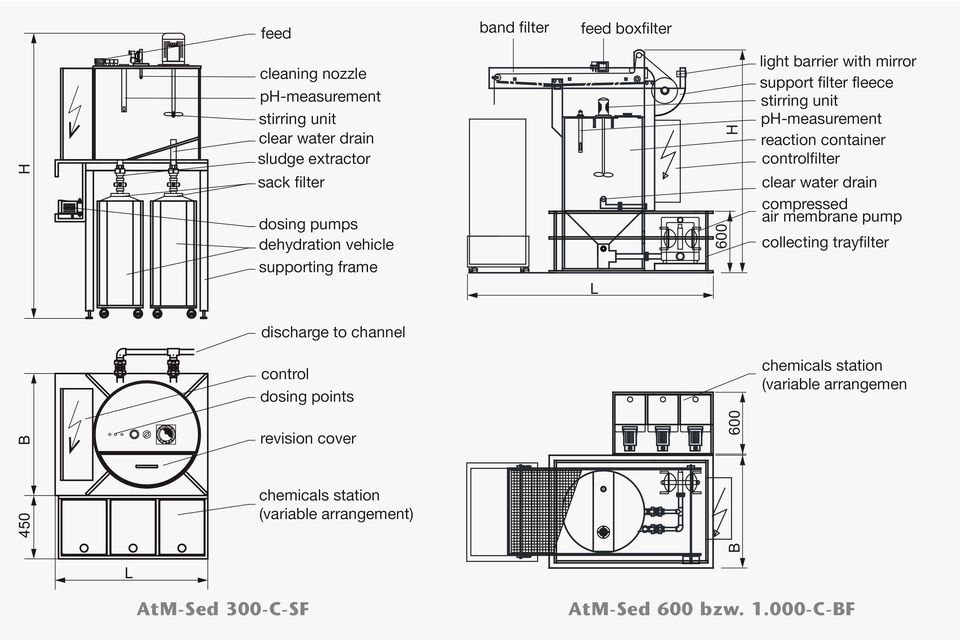

Dimensions
| Typ | Dimensions (mm) L | B | H |
|---|---|---|---|
| AtM-Sed 300-C-SF | 1,000 | 800 | 1,900 |
| Atm-Sed 600-C-BF | 2,400 | 1,100 | 2,100 |
| AtM-Sed 1.000 | 2,600 | 1,300 | 2,200 |
Accessories
| Denomination | Description | Article No. |
|---|---|---|
| Dosing pump | For further sewage water treatment. Design with suction device | 100.50.01 |
| pH end control | Optically | 100.50.02 |
| pH end control | Optically with digital recorder | 100.50.03 |
| Sludge thickener | For subsequent dehydration | 100.50.04 |
| Signal module | ■ By means of remote data transmission (DFÜ) ■ Fault indication to mobile phone | 100.50.05 |
